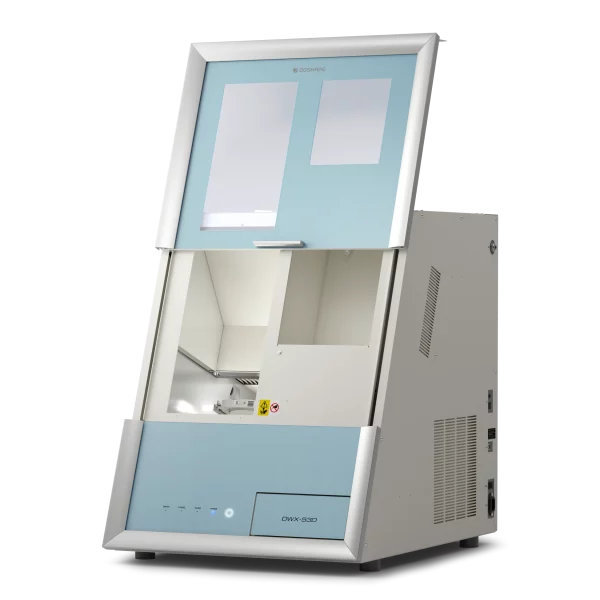

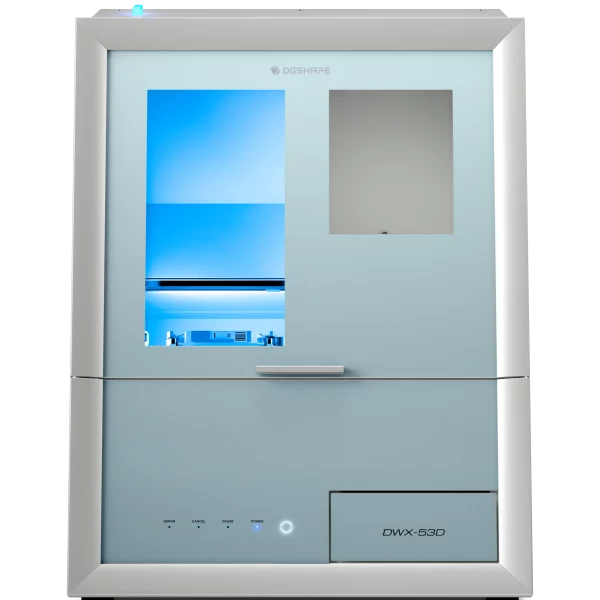

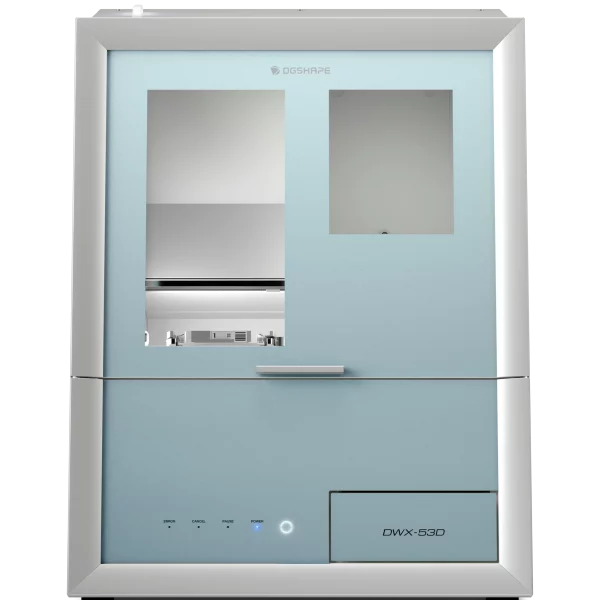

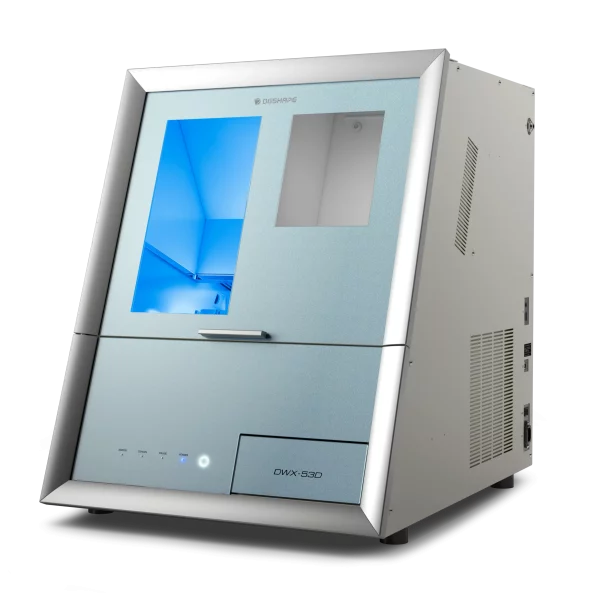

Advantages of Choosing the DWX-53D
With features like automatic calibration, dry milling capabilities, and intuitive software integration, the DWX-53D ensures your lab or practice stays at the forefront of dental innovation, providing high-quality restorations with minimal effort.
A game-changer for dental labs and clinics looking to elevate their production capabilities.
Whether your business is investing in its first milling device or you have a more established lab and want to expand your milling operations, the DWX-53D offers a user-friendly interface and cutting-edge technology that ensures seamless integration.
The enhanced precision and efficiency of the DWX-53D promises superior output and reduced production times over previous models.
The compact design and versatile functionality make it a perfect fit for any clinical environment
5-Axis Dental Milling
Up To 15 Burs Auto Tool Changer
Built-in Temperature Sensor
Open CAD/CAM System
User-Replacement Spindle
Remote Monitor
Millable Materials
- Zirconia
- Wax
- PMMA
- Composite resin
- PEEK
- PEKK
- Gypsum
- Glass fiber reinforced resin
- CoCr sinter metal
- Polycarbonate
Millable Applications
Millable Material
- Zirconia
- Wax
- PMMA
- Composite Resin
- PEEK
- PEKK
- Gypsum
- Polycarbonate
- Glass fiber reinforced resin
- CoCr sinter metal
Millable Applications
Whether you’re crafting dental crowns, bridges, or custom implants, this advanced technology ensures exceptional quality and consistency in every piece.
With the DWX-53D, you can explore a wide range of dental applications, all produced with the highest standards of accuracy and detail.
Inlay
Onlay
Overlay
Crown
Bridge
Veneer
Toronto Bridge
Copings
Implant Bar
Occlusal Splint
and Bites
Surgical Guide
Removable Dental
Prostheses
Millable
Applications
Occlusal Splint
and Bites
Surgical Guide
Removable Dental
Prostheses
Veneer
Toronto Bridge
Bridge
Overlay
Onlay
Inlay
Implant Bar
Crown
Copings
I believe that the key advantages of DWX-53D are hight-quality restorations.
With features like automatic calibration, dry milling capabilities, and intuitive software integration, the DWX-53D ensures our lab stays at the forefront of dental innovation, providing high-quality restorations with minimal effort.
Jimmy Lam – Bio Tec Dental Lab
Highlights
Strenght
Reinforced Rigidity 2X
Improves stability, 2x rigidity, for long-lasting premium results
Faster Milling of PMMA Materials
Innovative CAD/CAM Milling Strategy
4mm PMMA Roughing Tool
- The DWX-53D reduces milling times by more than 30% compared to older milling machines (milling times vary according to the denture size)
Precision
High-Quality Milling of All Dental Applications
Open Edge Adapter allows milling of undercuts of anatomic detail.
3x increased gripping force for smooth surfaces and bio-mechanical accuracy
Intelligence
Automatic Cleaning System
Removes dust from every Surface.
Fully configurable to optimise speed or cleanliness up to 95% dust removal
Usability
Advanced Monitoring and Maintenance with DGSHAPE Insights
- Integrated Camera
- Remote Monitoring
- Productivity Reporting
More efficient cleaning work
The high-power air blow program removes 99％ of zirconia debris from the milled disc.
The dedicated extractor automatically cleans its filter at optimal intervals maintaining the cleaning power.
Strength
Reinforced Rigidity 2X
Improves stability, 2x rigidity, for long-lasting premium results
Faster Milling of PMMA Materials
Innovative CAD/CAM Milling Strategy
4mm PMMA Roughing Tool
Precision
High-Quality Milling of All Dental Applications
Open Edge Adapter allows milling of undercuts of anatomic detail.
3x increased gripping force for smooth surfaces and bio-mechanical accuracy
Intelligence
Automatic Cleaning System
Removes dust from every Surface.
Fully configurable to optimise speed or cleanliness up to 95% dust removal
Usability
Advanced Monitoring and Maintenance with DGSHAPE Insights
- Integrated Camera
- Remote Monitoring
- Productivity Reporting
VPanel for DWX
With VPanel you can control your milling machine.
Monitor tool use and set notifications so you know when milling jobs are done, operations are completed, or when an error has occurred, so you can save time for other jobs.
VPanel has a very user friendly interface, that allows you to use it in the best way.
Fully leverage your experience with DGSHAPE through DGSHAPE CLOUD, an advanced cloud service provided by DGSHAPE.
Accessible via your DGSHAPE Account, it grants you access to Insights, a tool for remotely monitoring your CAD/CAM milling devices and supporting your business.
Technical Information
105 kg (231.49 lb.)Width 598
Width × depth × height: 555 × 725 × 705 mm (21.85 × 28.54 × 27.76 in.)
Disk-type (with step) work-piece
Step section: 98.5 mm (3.88 in.) (diameter), 10 ± 0.3 mm (0.39 ± 0.01 in.) (height)
Body section: 95 mm (3.74 in.) (diameter), 60 mm (2.36 in.) max. (height)
Operating speed
X, Y: 3,000 mm/min (118.11 in./min) max., Z: 2,700 mm/min (106.29 in./min) max
Spindle rotating speed: 6,000 to 30,000 rpm
Rotary axis travel angle: A: ± 360°, B: ± 35°
Rotary axis travel angle
A: ±360° , B: ±35°
Number of milling burs housed 15
Shank diameter: 4 mm (0.16 in.), length: 40 to 55 mm (1.57 to 2.17 in.)
Interface: USB
Power requirements 100 to 240 VAC ± 10%, 50/60 Hz (overvoltage category: II, IEC 60664-1),1.8 A
Power consumption Approx. 170 W
ZMA2-53DC Open edge adapter
ZS-53DC
ZSB-210 Spindle Belt
Quick Feature Overview
Frequently Asked Questions
Mainly for three reasons: the quality of the machinery, our milling machines have a very long lifecycle; the quality of the produced applications, the lifecycle of the tools and ease of use.
Our decision to separate dry from wet milling production stems from the idea of providing our customers with dental milling machines that are easy to use, require little maintenance, and have the fewest possible issues during their lifecycle.
All our DGSHAPE milling machines have an open CAD/CAM system, allowing the machine owner to use their preferred software.
Please, contact your resellers for details.
The warranty provided directly by DGSHAPE lasts for one year.
The dealer from whom the customer purchases the machine may offer any warranty extensions. Additionally, DGSHAPE provides a customer support subscription service.
One of the strengths of DGSHAPE dental milling machines is their ease of use, from calibration to maintenance.
We at DGSHAPE do not directly provide courses, but usually, it’s our trained dealers who offer assistance and courses from the initial installation.
Finally, we have tutorials on our website and YouTube channel.
Through our network of dealers, we are present in over 200 countries.
In addition, DGSHAPE has direct subsidiaries in the main countries where it operates, ensuring comprehensive support in the local language.
We firmly believe in the quality of our machinery, which is why DGSHAPE provides spare parts for its dental milling machines at a reasonable cost.
Additionally, it allows for easy replacement of the spindle, which can be done autonomously by the machine owner.
