Denture Kit for DWX Dry Dental Mills
Shape Smiles for all
DGSHAPE’s Denture Kit lets you choose to produce custom dentures with heat-cured or cold-cured acrylic.
Carded, milled, or printed teeth are set in minutes as tooth pockets are milled into the denture base to ensure ease of sitting.
Take the process a step further using the carded tooth tray and produce an aesthetic, full denture in less than four hours.
Along with offering a choice of workflows, using the denture kit lowers production costs and improves turnaround times while providing high-quality output, making it the ideal digital denture solution.
Tooth-setting simplified
Easily fit carded, milled, or printed teeth into milled pockets
Affordable aesthetic solution
Create aesthetically pleasing, custom-made full dentures in-house and save money instantly
Faster turnaround time
Employ this digital workflow and put the time you save back into your business
Heat-cured compatible
Choose to use heat-cured or cold-cured acrylic with your denture kit
Open Solution
The denture kit is compatible with the latest CAD software, including 3Shape’s Dental System and exocad
Choose between two types of workflows
Denture Base Workflow
Manual work time: 50 mins
Milling times: 2hrs 15 mins*
*Milling time varies according to denture size and DWX model
The optimized tray shape and 3mm or 4mm roughing tool reduce material costs and milling time.
A temporary bond can be used to fix carded teeth for test fittings.
WORKFLOW*
01 Pre-polymerization
02 Post-polymerized
millable acrylic block
03 Milled acrylic base
04 Manually placed carded teeth
05 Polish and finish
*The workflow with heat-cured acrylic is different.
*Please refer to the support page for manuals and videos that provide workflow details.
Removable Denture Workflow
Manual work time: 25 mins
Milling times: 3hrs 15 mins*
*Milling time includes sockets milling. Milling time varies according to denture size and DWX model.
Set teeth easily after milling sockets into the tray, prior to polymerization.
Then, complete the workflow to produce a fully finished denture. The resulting bond is both extremely strong and yields a more natural looking product.
WORKFLOW*
01 Milled carded teeth
sockets
02 Manually placed
carded teeth
03 Post-polymerized
millable block
04 Milled acrylic base and teeth
05 Polish and finish
*The workflow with heat-cured acrylic is different.
*Please refer to the support page for manuals and videos that provide workflow details.
Choose between two types of workflows
Manual work time: 50 mins
Milling times: 2hrs 15 mins*
*Milling time varies according to denture size and DWX model
The optimized tray shape and 3mm or 4mm roughing tool reduce material costs and milling time.
A temporary bond can be used to fix carded teeth for test fittings.
Workflow*
*The workflow with heat-cured acrylic is different.
*Please refer to the support page for manuals and videos that provide workflow details.
02. Removable Denture Workflow
Manual work time: 25 mins
Milling times: 3hrs 15 mins*
*Milling time includes sockets milling. Milling time varies according to denture size and DWX model.
Set teeth easily after milling sockets into the tray, prior to polymerization.
Then, complete the workflow to produce a fully finished denture. The resulting bond is both extremely strong and yields a more natural looking product.
Workflow*
*The workflow with heat-cured acrylic is different.
*Please refer to the support page for manuals and videos that provide workflow details.
Choose between three types of denture kits
CA-DK2
CA-DK2 is the Denture Kit for DWX-52 series devices.
DWX dental mills provide high precision for milling dentures.
The optimized tray shape and 3mm roughing tool reduce material costs and milling time.
CA-DK2 is compatible with both the Denture Base workflow and the Removable Denture workflow.
Compatible dental mills

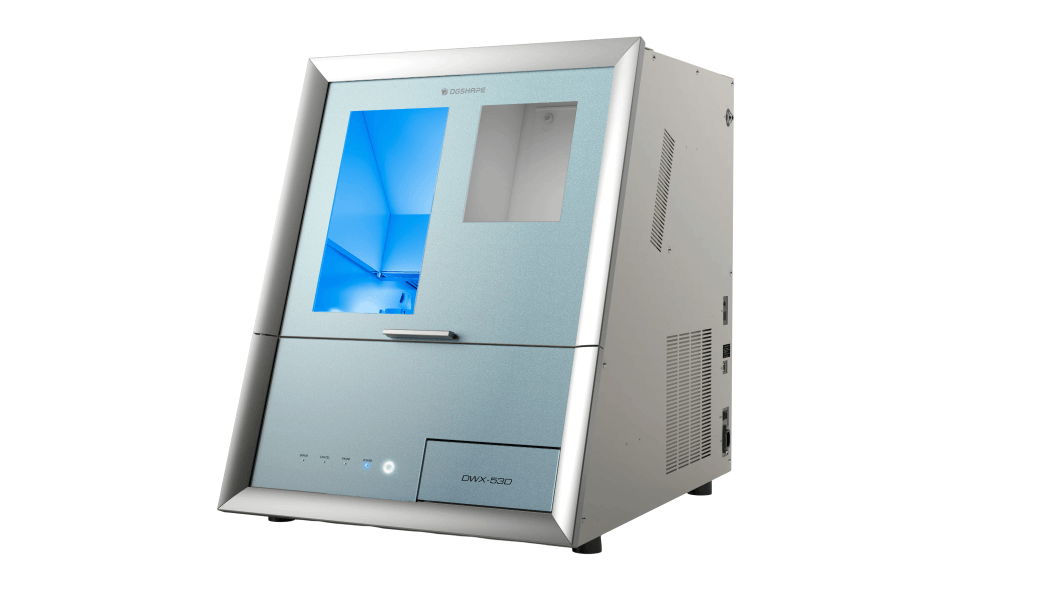

DWX-52DCi Plus / DWX-52D Plus
CAD
Full Denture Design Module/3Shape
Full Denture Module/ exocad
CAM
MillBox/CIMsystem
DGSHAPE Dental CAM
Components
CA-DK2-FX x 15*
CA-DK2-TR x 15*
Silicone stand x 2
*consumables can be purchased separetly
Milling bur
ZRB-150D
ZPB-100D
ZPB-50D
ZPB-30D
Work with
Denture Base workflow
Manual work time: 50 mins
Milling time: 2 hrs 45 mins*
*Milling time varies according to denture size and DWX model.
Work with
Removable Base workflow
Manual work time: 25 mins
Milling time: 3 hrs 45 mins*
*Milling time includes sockets milling. Milling time varies according to denture size and DWX model.
Work with
Denture Base workflow
Manual work time: 50 mins
Manual work time: 2 hrs 45 mins*
*Milling time varies according to denture size and DWX model.
Work with
Denture Base workflow
Manual work time: 25 mins
Manual work time: 3 hrs 45 mins*
*Milling time includes sockets milling. Milling time varies according to denture size and DWX model.
DK2-53

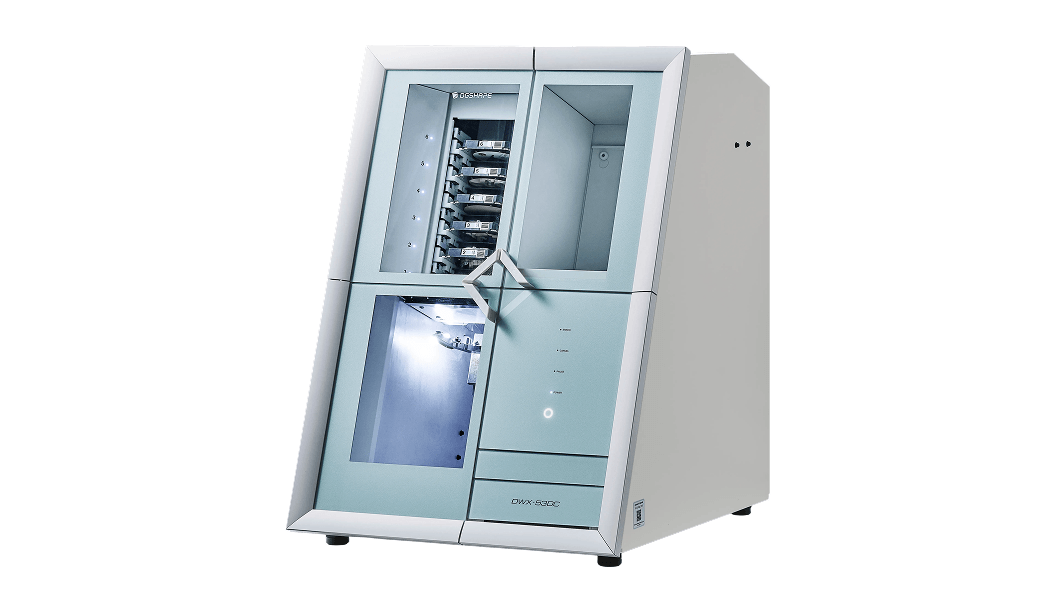

DK2-53 is the Denture Kit for the DWX-53DC, the latest DGSHAPE device which features strengthened rigidity and a newly designed spindle for high performance denture milling. 4mm roughing tool reduces milling time.
DK2-53 is compatible with both the Denture Base workflow and the Removable Denture workflow.
Compatible dental mills
DWX-53DC
CAD
Full Denture Design Module/3Shape
Full Denture Module/ Exocad
CAM
MillBox/CIMsystem
DGSHAPE Dental CAM
Components
DK-53-FX x 15*
DK2-53-TR x 15*
Silicone stand x 2
*consumables can be purchased separetly for your favorite workflow
Milling bur
ZRB-200D
ZPB-100D
ZPB-50D
ZPB-30D
Work with
Denture Base workflow
Manual work time: 50 mins
Manual work time: 2 hrs 15 mins*
*Milling time varies according to denture size and DWX model
Work with
Denture Base workflow
Manual work time: 25 mins
Manual work time: 3 hrs 15 mins*
*Milling time includes sockets milling. Milling time varies according to denture size and DWX model.
Work with
Denture Base workflow
Manual work time: 50 mins
Milling time: 2 hrs 15 mins*
*Milling time varies according to denture size and DWX model.
Work with
Removable Base workflow
Manual work time: 25 mins
Milling time: 3 hrs 15 mins*
*Milling time includes sockets milling.
Milling time varies according to denture size and DWX model.
CA-DK1
The smaller silicone shape reduce milling time and material cost.
Compatible dental mills
DWX-53DC / DWX-52DCi Plus / DWX-52DC Plus / DWX-52Di
Compatible CAD/CAM DK1
CAD
Full Denture Design Module/3Shape
Full Denture Module/ Exocad
DWOS Full Denture/ dental wings
CAM
MillBox/CIMsystem DGSHAPE Dental CAM
Compatible CAD/CAM DK1-TR
CAD
Full Denture Design Module/3Shape
DWOS Full Denture/ dental wings
CAM
MillBox/CIMsystem
DGSHAPE Dental CAM
Size comparison between CA-DK1 and CA-DK2
CA-DK2 FX Try Size
inner dimension
CA-DK1- Silicon mold size
inner dimension
CA-DK2-FX Try Size
inner dimension
Compatible dental mills
DWX-53DC / DWX-52DCi Plus / DWX-52D Plus
Compatible CAD/CAM DK1-TR
CAD
Full Denture Design Module/3Shape
DWOS Full Denture/ dental wings
CAM
MillBox/CIMsystem
DGSHAPE Dental CAM
CA-DK1 - Silicone mold size
inner dimension
Components
Silicone mold x 6*
Fixture x 50 sets
Silicone plate x 3
Model jig x 3
ZRB-150D
*consumables can be purchased separetly
Requirement CA-DK1
Denture Base workflow
Requirement CA-DK1/ Try x10
Removable Base workflow
Requirement CA-DK1
Denture Base workflow
Requirement CA-DK1/ Try x10
Removable Denture workflow
Customer Review
CA-DK1
Dr. Jae-min Lee（Mirero Dental Clinic）
CA-DK1-TR
Dr. Jae-min Lee（Mirero Dental Clinic）
